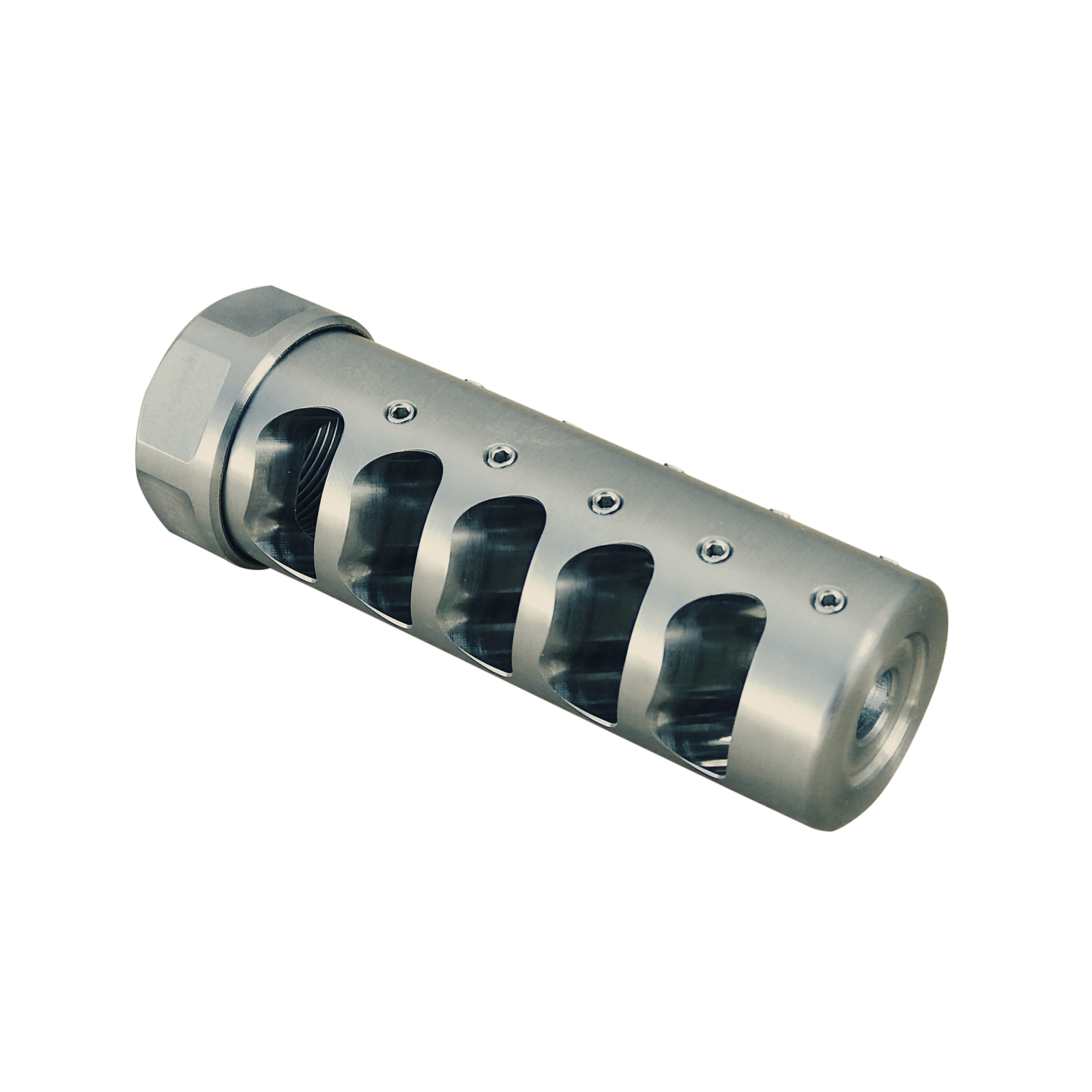

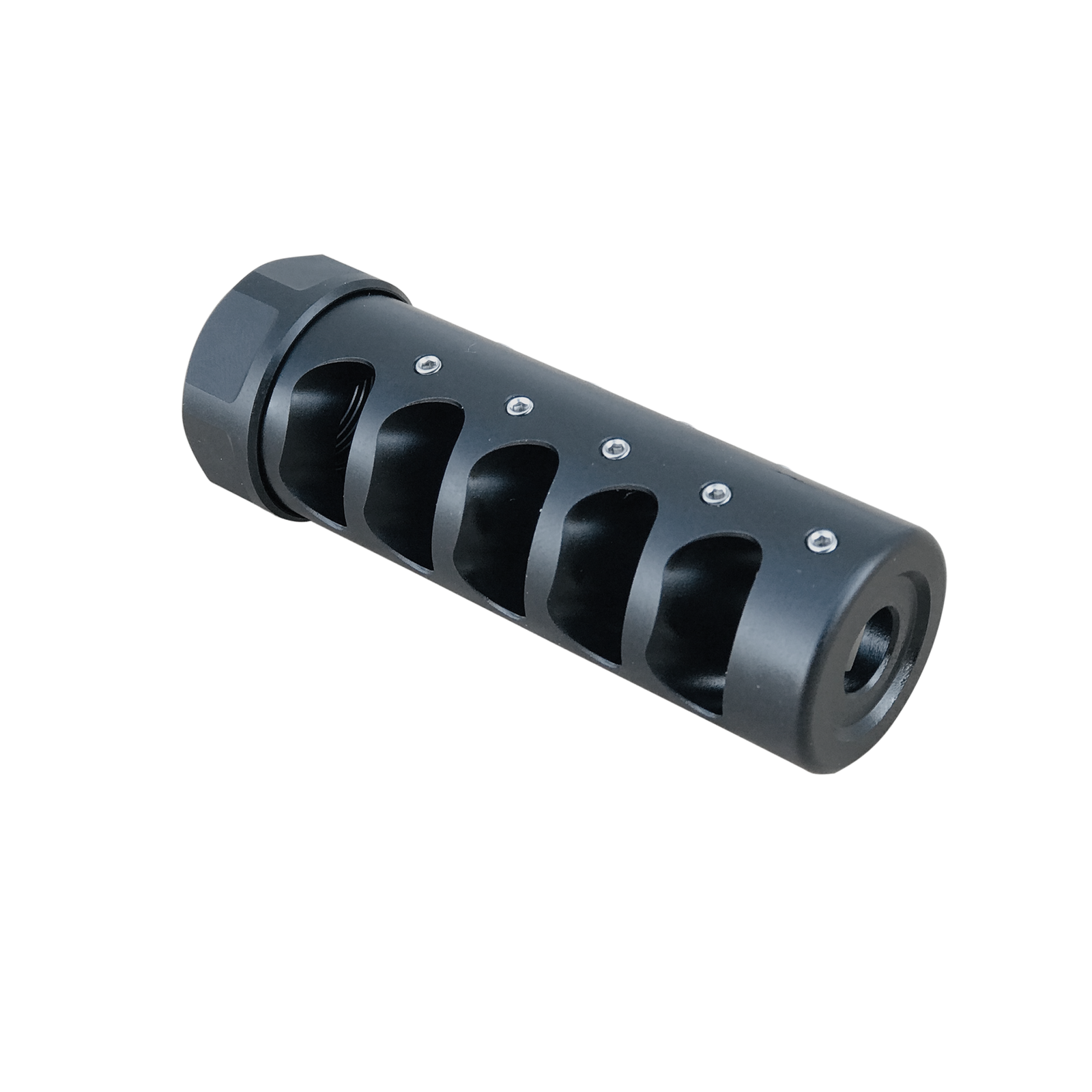

Gen 3 Fat Bastard Self Timing Muzzle Brake*

Thread
Caliber
Finish

American Precision Arms is very excited to share the release of the Generation 3 Fat Bastard. It has been a long time coming but we wanted to make sure everything was perfect before offering something new.

The development of APA Gen 3 Fat Bastard was the result of American Precision Arms' constant pursuit of breaking the mold and a desire to meet the demands of the Long-Range and Hunting markets.  APA has combined the standards of high-level performance and reliability with distinctive design enhancements to improve both accuracy and performance. These enhancements benefit the shooter experience at the range and in the field where every advantage matters.

The roots of the new Generation 3 version of the Fat Bastard lie in the requests of the elite long-range precision rifle community. APA's goal was to meet the needs of those shooters while also maintaining their standards of pristine manufacturing. Among the design, changes are three key features. The advanced Unique Recoil Profile tunable top port design allows the shooter to fine-tune the muzzle movement for absolute target retention.  In addition to that, the new lock nut design creates a zero over rotating platform. Last, is the addition of a fifth Bastard port section that eliminates even more recoil than before.

NOT JUST STOPPING RECOIL, BUT LATERAL MOVEMENT AND MUZZLE RISE AS WELL, FOR A TRULY NEUTRAL SIGHT PICTURE.

URP (Unique Recoil Profile) Top Ports

This allows the shooter to not only combat direct recoil but muzzle rise and lateral movement based on the characteristics of their rifle, personal grip, stance, and the position they are shooting from.

We developed the U.R.P. Adjustable Gas System. These aren't just randomly placed top ports. Every port is placed adjacent to the internal Bastard tooth where there is maximum pressure build-up. This makes the adjustable ports directionally effective.

The unique tunable gas system combined with the trademark APA ports work together to achieve a sight picture that moves less than ever before. There are 10 directional gas ports that can be tuned to counteract you’re U.R.P. (unique recoil profile).

 There are endless combinations to keep your sights on target. To calibrate the brake to your U.R.P., start testing with all the gas screws installed. Pay attention to the movement of your reticle, and begin removing the gas screws as the recoil requires.

 When the gas screws are removed on the right side, the rifle will be shifted left. For the opposite effect simply remove the screws on the left. The gas holes closer to the nut have a more dramatic effect and the ports closer to the brake crown have a lesser effect.  When you find your U.R.P. combination, Threadtite your screws into place.


Additional Row of Bastard Ports
• For Added Recoil Reduction

New Lock-Nut Design
• Perfect Muzzle Placement
• No Carbon Ring
• No Over Rotation
• Stronger Lock Up



1.10" in Diameter, 3.5" In Length and Weighs 7.2 oz

Made for a barrel diameters of .850 or larger.

The Gen 3 Fat Bastard can handle magnum cartridges.

Available in 6mm, 6.5mm, .308 (7mm) & .338.

Available in 5/8X24, 3/4x24, 18x1 & 18x1.5 thread patterns.

  • Choose the .223 variant for any cartridge with a .223-.224" diameter bullet such as 5.56x45mm, 223 Remington, and 22-250 Remington.

  •  Choose the 6mm variant for any cartridge with a .243" diameter bullet or smaller such as 6mm Creedmoor or 243 Winchester.

  • Choose the 6.5mm variant for any cartridge with a .264" diameter bullet or smaller such as 6.5mm Creedmoor, and 260 Remington.

  •  Choose the 30 or 308 variant for any cartridge with a .308" diameter bullet or smaller such as 270 Winchester, 7mm Remington Mag, 28 Nosler, 7.62x51mm, as well as the 300 Winchester Magnum, 30-06 Springfield, and 308 Winchester.

  • Choose the 338 variant for any cartridge with a .338" diameter bullet or smaller such as 338 Lapua Magnum and 8mm Remington Magnum.

Each brake includes set screws, one Allen wrench, and a single-use Threadtite.

Extra Gen 3 Screw Kits are available here.
